UFLOW85
FULL LINE
UFLOW 85
It is remarkable that UFLOW 85 combines the excellent manufacturing performance of
DURONIC 8300 with coating process in line,
which ensures significantly enhancing
production efficiency.
Launch of the Coating (COATER) Process Combination model (2024)
Significantly simplifies the process, saves space and time,
reduces production costs,
and minimizes quality variation compared to existing coating methods.
UFLOW 85
It is remarkable that UFLOW 85 combines the excellent manufacturing performance of DURONIC 8300 with coating process in line, which ensures significantly enhancing production efficiency.
Launch of the Coating (COATER)
Process Combination model (2024)
Significantly simplifies the process, saves space and time, reduces production costs, and minimizes quality variation compared to existing coating methods.
Machine Speed
120m/min (max)
Output Roller Width
8,300mm

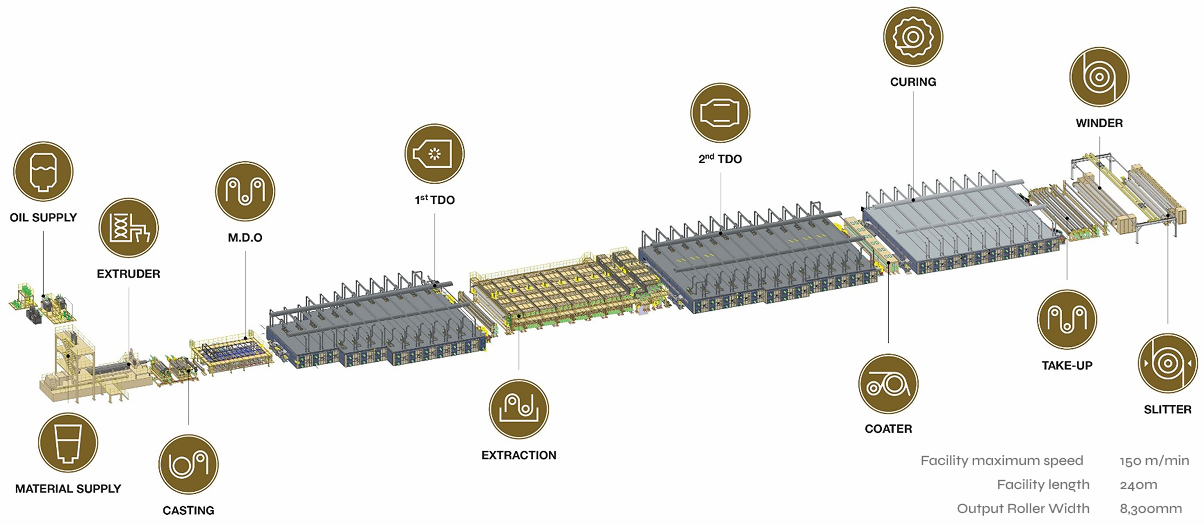

UFLOW 85
Machine Description

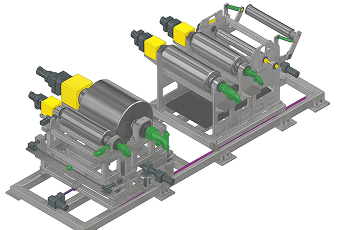

CASTING UNIT
Forming the hot melt of the raw materials into a sheet form
Speed
~20m/min
Roll Width
1,400mm

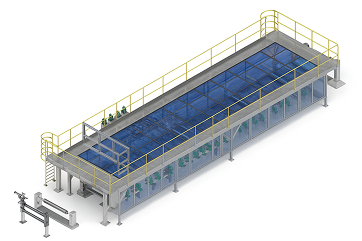

MDO UNIT
Stretching the sheet in a longitudinal direction
Speed
~120m/min
Stretch Ratio
1 : 1~10
Roll Width
1,400mm

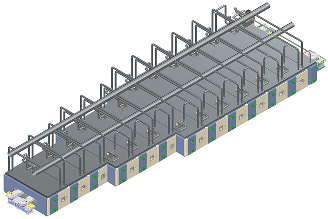

1st TDO UNIT
Elongating the sheet in the transverse direction
Speed
~120m/min
Stretch Ratio
1 : 4.5~11
Outlet Width
9,000mm

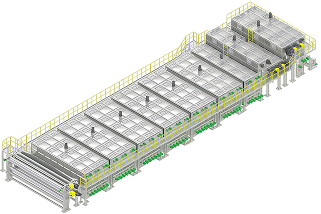

EXTRACTION UNIT
Creating micropores by dissolving and extracting paraffin oil within the film dipping through many MC tanks
Speed, Dipping Length
~120m/min, About 150m
Roll Width, MC Tanks
About 6,500mm , 8EA

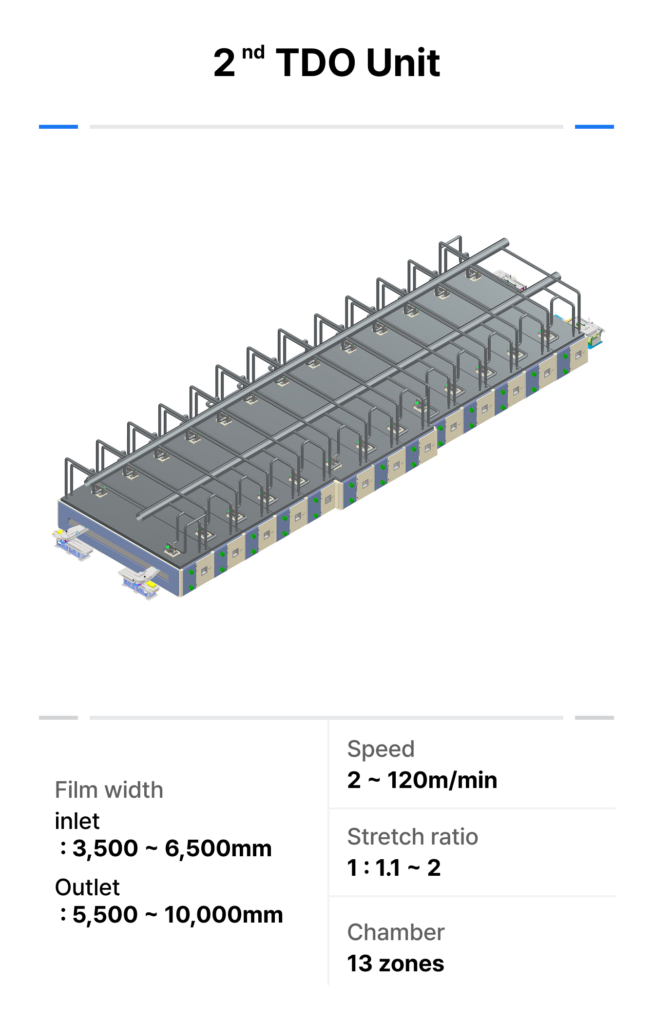

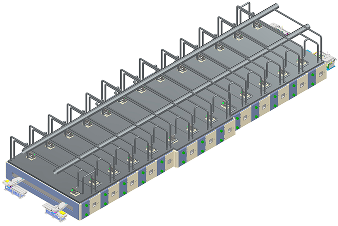

2nd TDO UNIT
Elongating the extracted film again in the transverse direction
Speed
~120m/min
Stretch Ratio
1 : 1.1~2.0
Outlet Width
~9,000mm

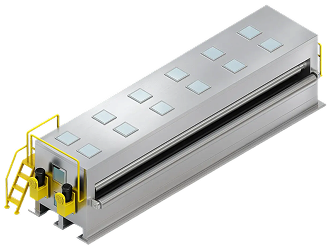

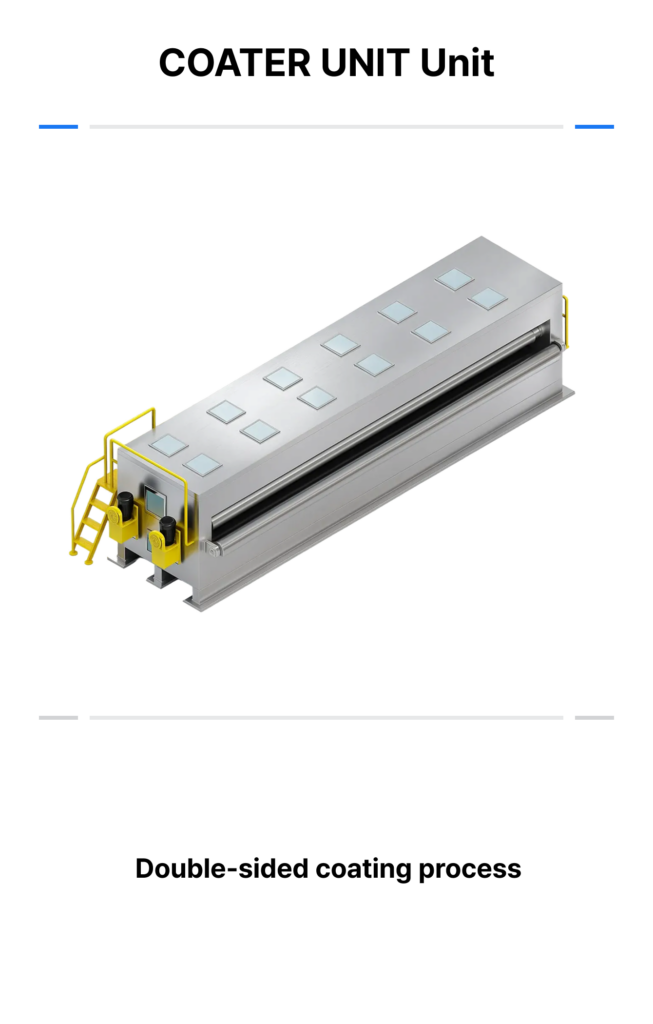

COATER UNIT
Double-sided coating process

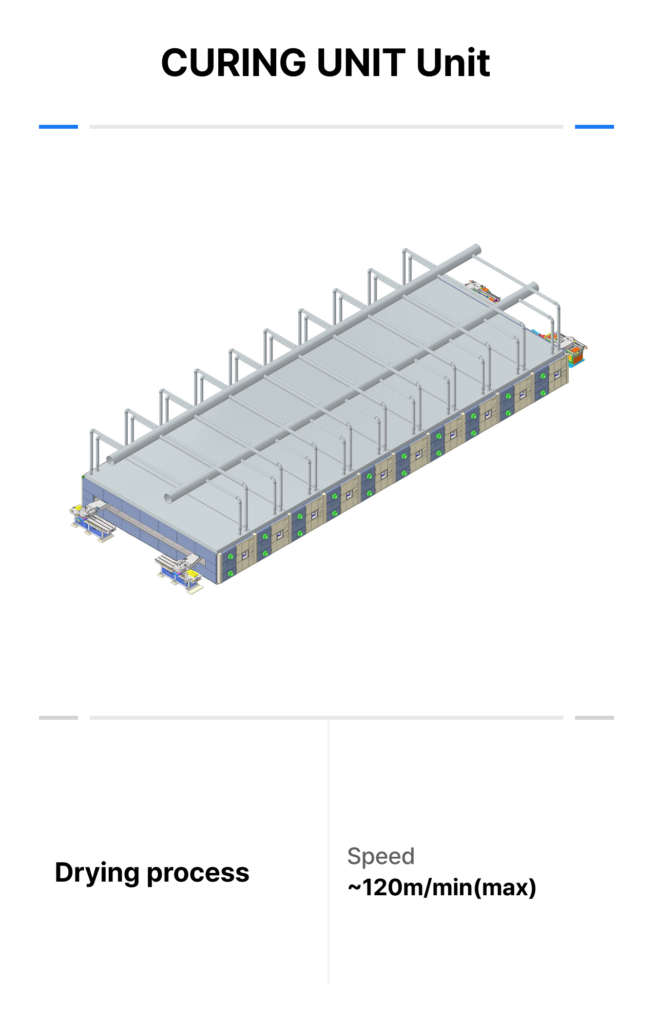

CURING UNIT
Drying process
Speed
~120m/min(max)

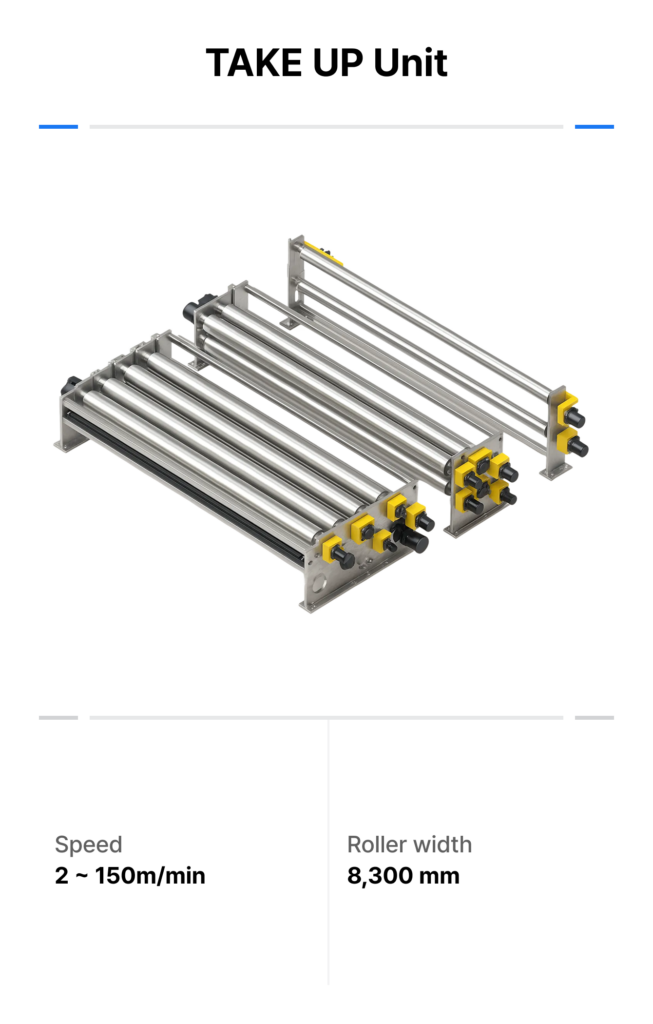

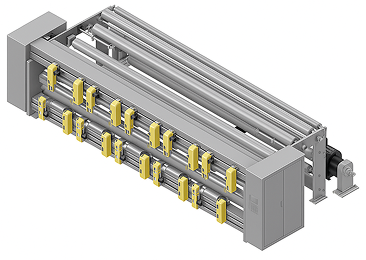

TAKE-UP UNIT
Heat treating the film to fix its shape
Double Jacket Type
Roll Width
8,300mm
