Wider and Faster: Design the Future of Innovation
UFLOW85
FULL LINE
UFLOW 85
UFLOW 85 combines the excellent manufacturing performance of
DURONIC 8300 with coating process in line,
which ensures significantly enhancing
production efficiency.
Launch of the Coating Process (COATER) Combination model
Significantly simplifies the process, saves space and time,
reduces production costs,
and minimizes quality variation compared to existing coating methods.
UFLOW 85
UFLOW 85 combines the excellent manufacturing performance of
DURONIC 8300 with coating process in line,
which ensures significantly enhancing
production efficiency.
Launch of the Coating Process (COATER)
Combination model
Significantly simplifies the process, saves space and time,
reduces production costs,
and minimizes quality variation compared to existing coating methods.

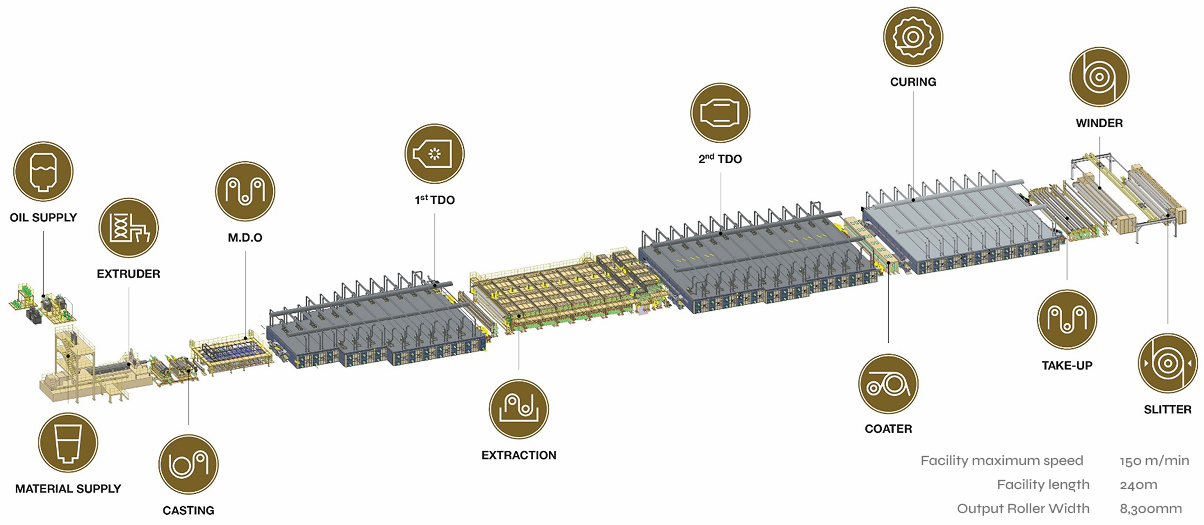

Facility maximum speed
150 m/min
Facility length
240m
Output Rollrt Width
8,300mm
UFLOW 85
Machine Description

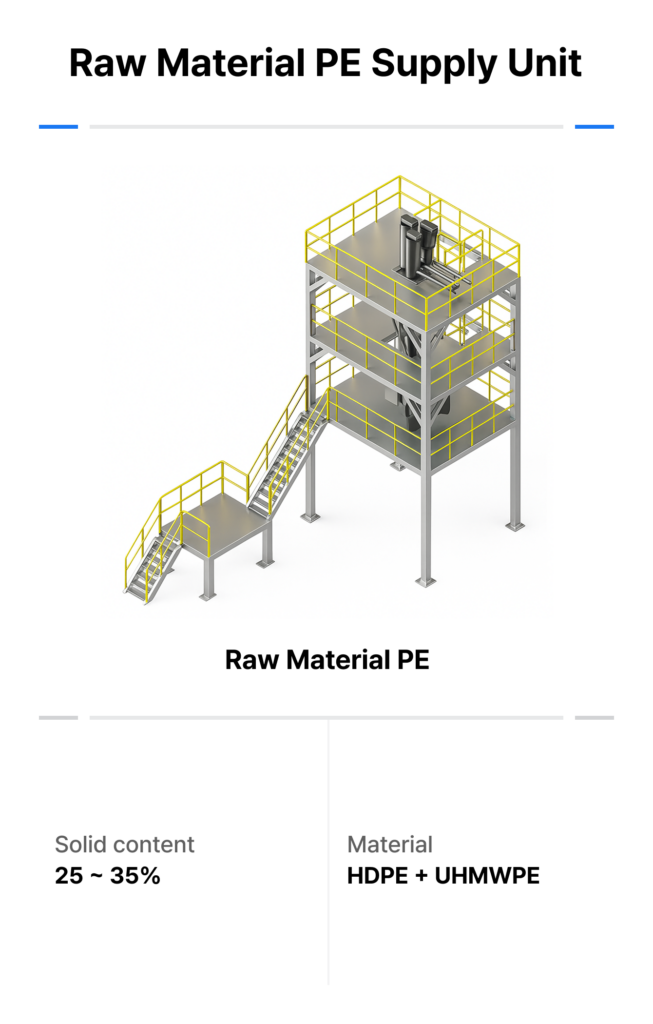

Raw Material PE Supply Unit
Raw Material PE
Solid content
25 ~ 35%
Material
HDPE + UHMWPE

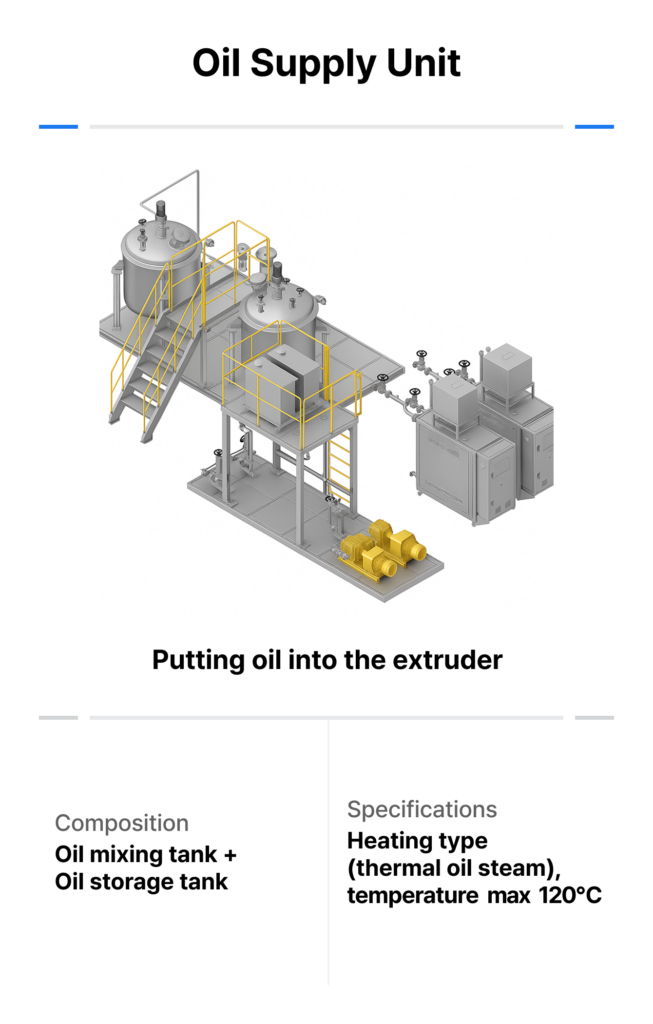

Oil Supply Unit
Putting oil into the extruder
Composition
Oil mixing tank + Oil storage tank
Specifications
Heating type (thermal oil steam), temperature max 120℃

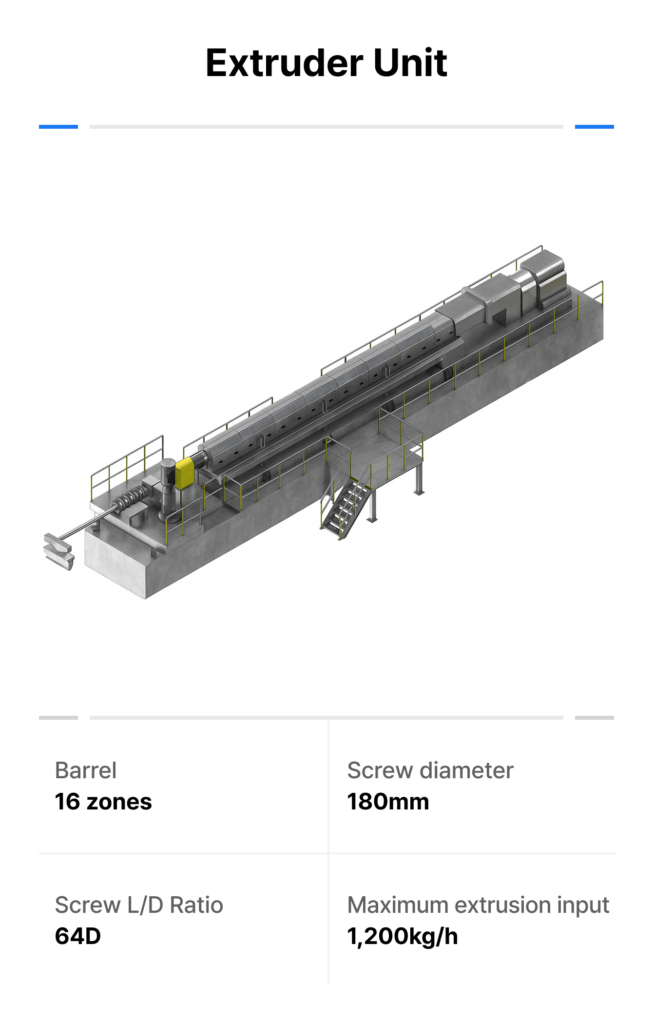

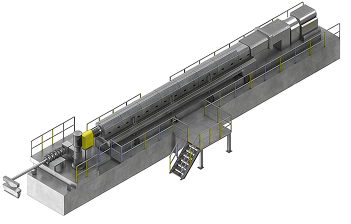

Extruder Unit
Barrel
16 zones
Screw diameter
180mm
Screw L/D Ratio
64D
Maximum extrusion input
1,200kg/h

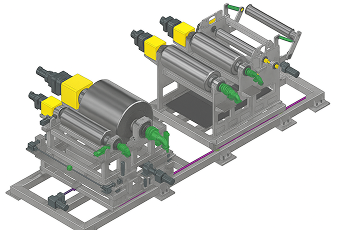

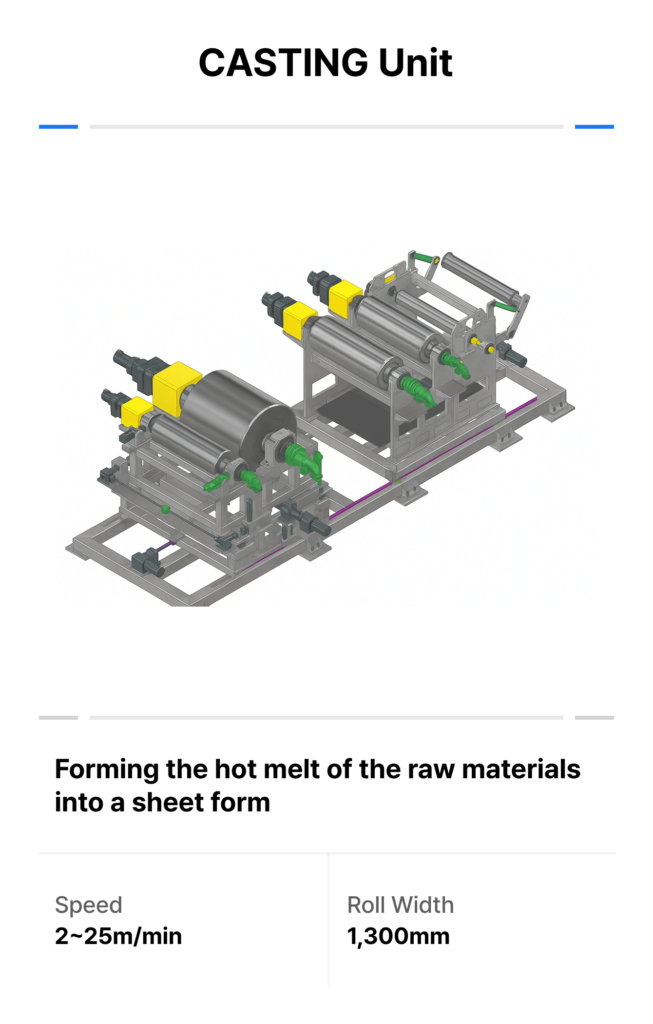

CASTING Unit
Forming the hot melt of the raw materials into a sheet form
Speed
2 ~ 25m/min
Roll Width
1,300mm

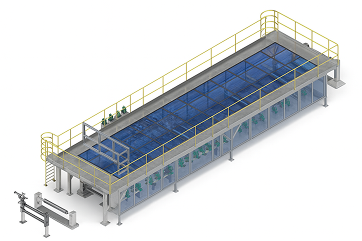

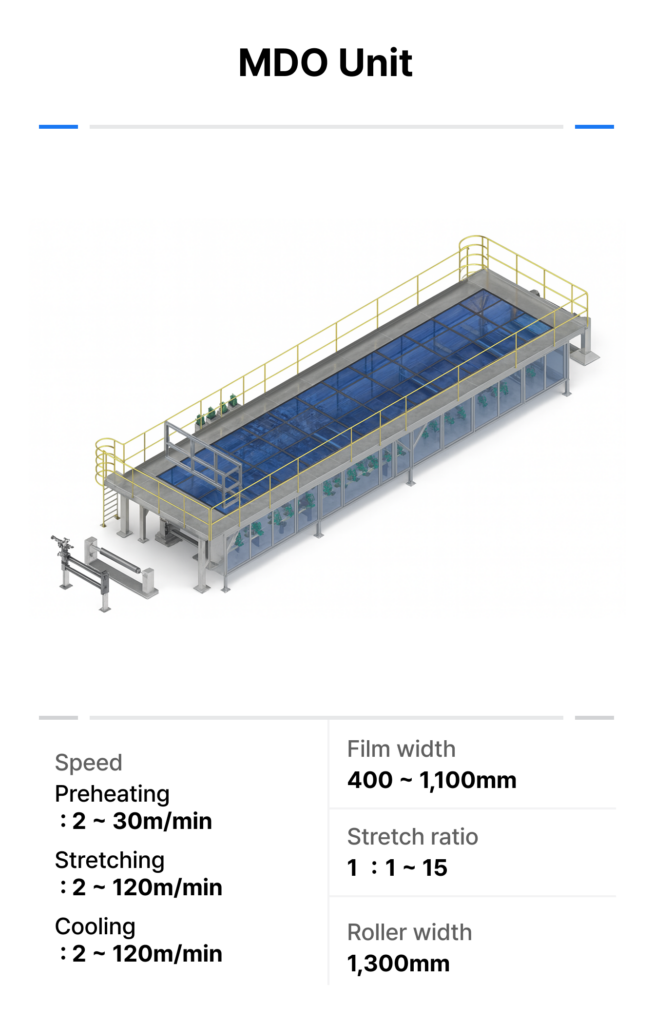

MDO Unit
Speed
Preheating 2 ~ 30 m/min
Stretching 2 ~ 120 m/min
Cooling 2 ~ 120 m/min
Film width
400 ~ 1,100mm
Stretch ratio
1 ：1 ~ 15
Roller width
1,300 mm

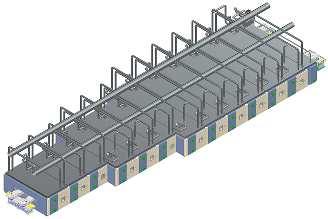

1st TDO UNIT
Speed
2~ 120m/min
Film width
inlet : 400 ~ 1,100 mm
Outlet : 4,500 ~ 9,000mm
Stretch Ratio
1：4.5 ~ 15
Chamber
12.5 zones

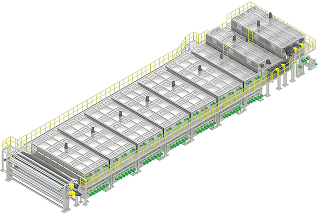

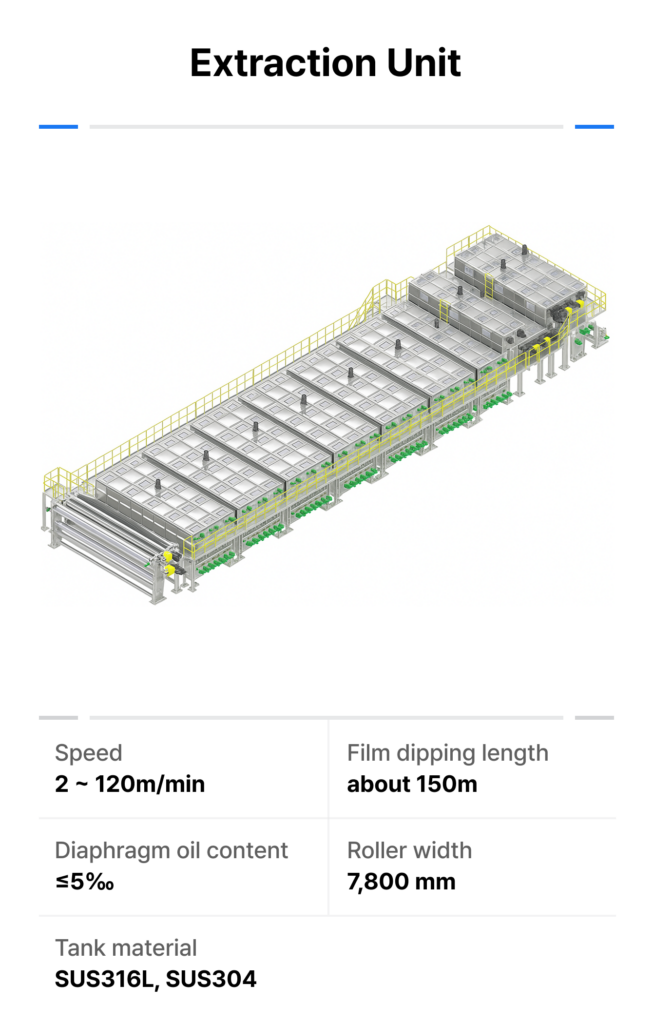

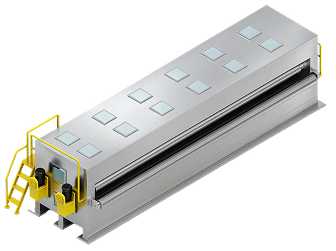

Extraction Unit
Speed
2~ 120m/min
Film dipping length
about 150m
Diaphragm oil content
≤5‰
Roller width
7,800mm
Tank material
SUS316L, SUS304

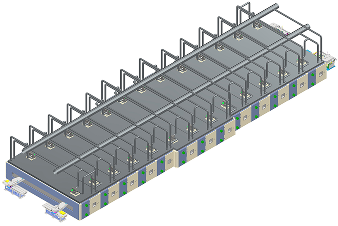

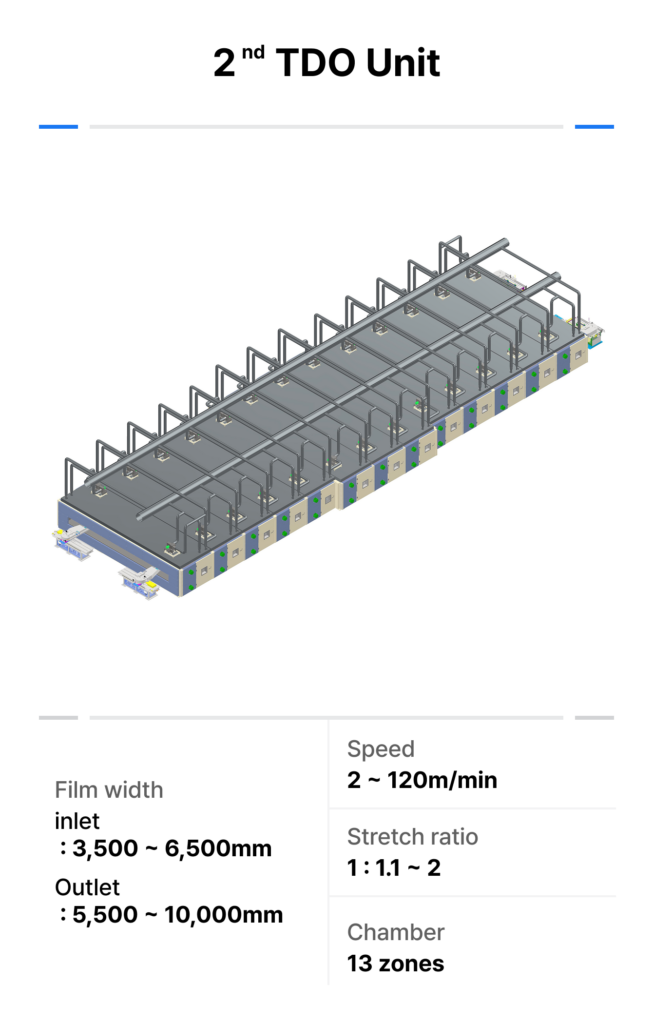

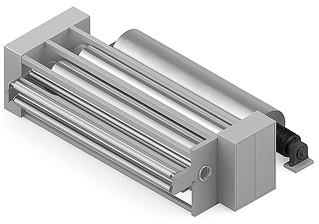

2nd TDO UNIT
Speed
2 ~ 120m/min
Film width
Inlet : 3,500 ~ 6,500mm
outlet : 5,500 ~ 10,000mm
Stretching ratio
1: 1.1 ~ 2
Chamber
13 zones

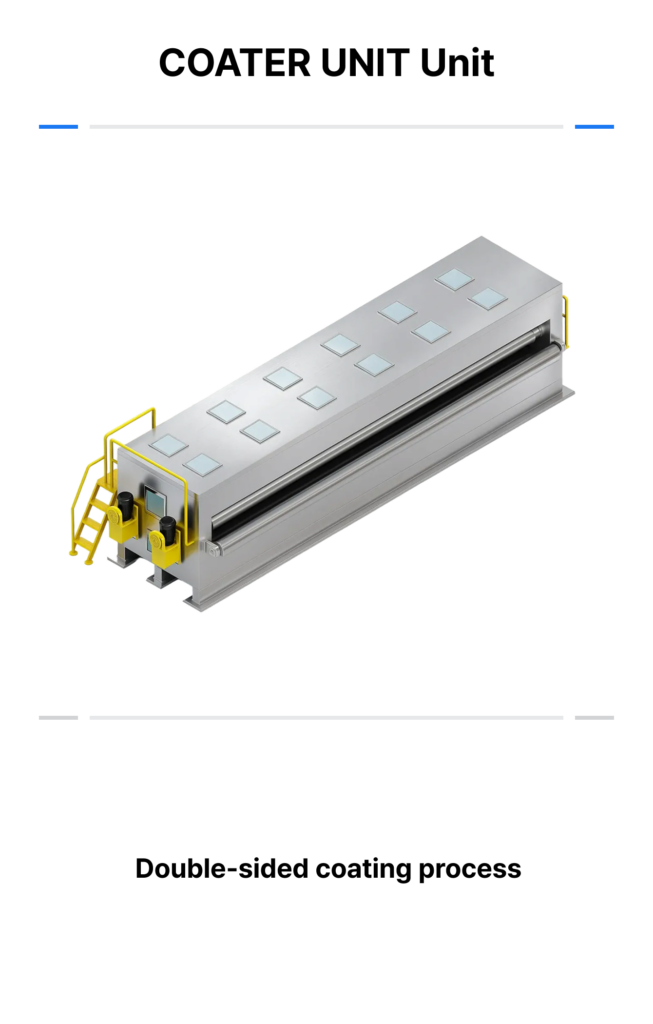

COATER Unit
Double-sided coating process

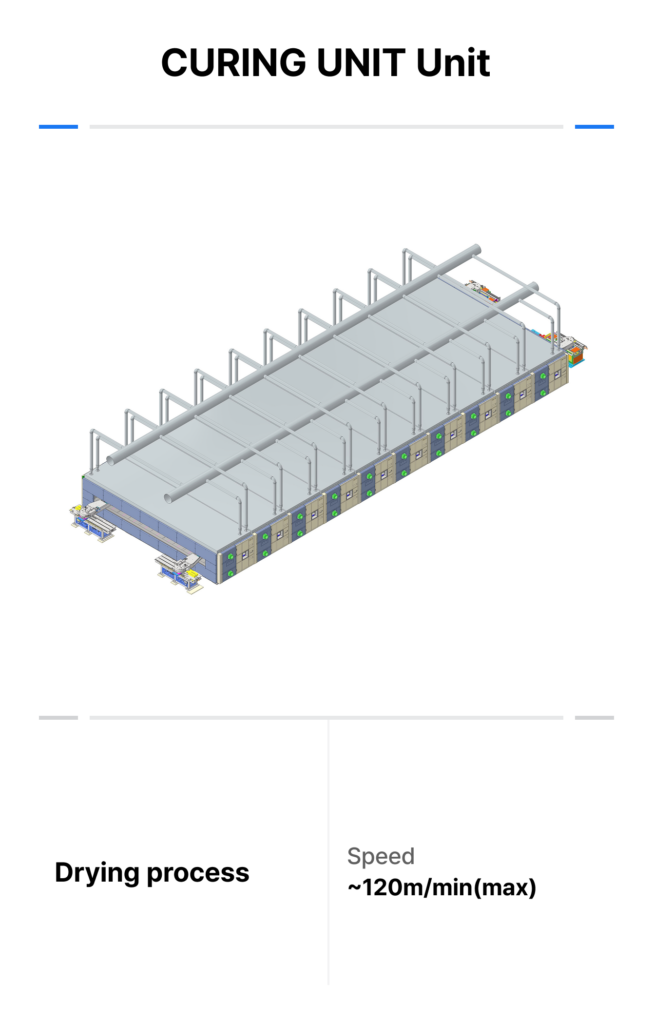

CURING Unit
Drying process
Speed
~ 120m/min(max)

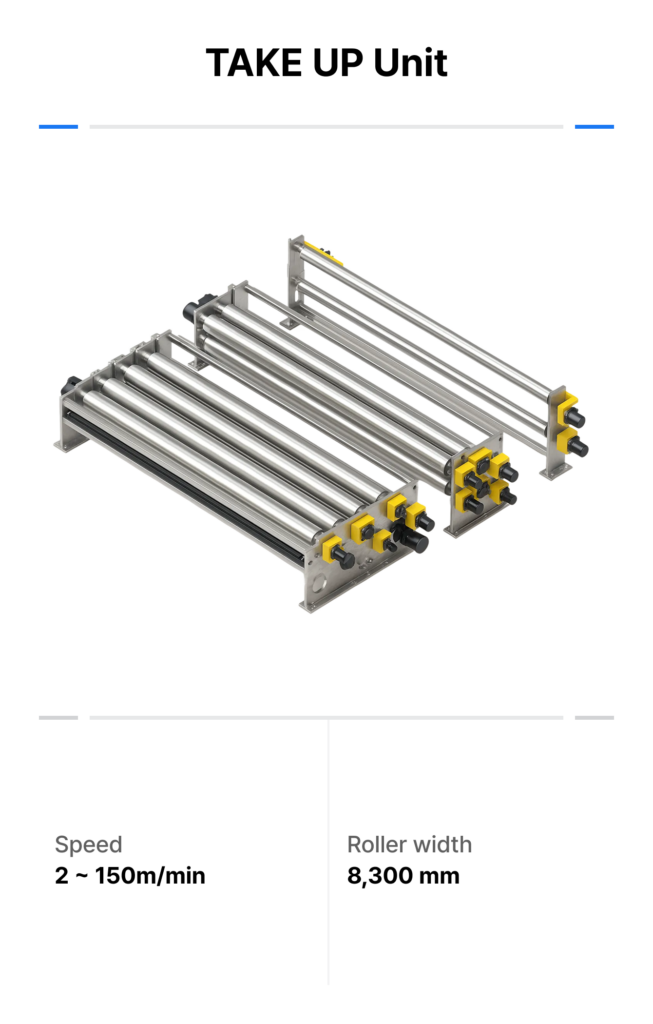

TAKE UP Unit
Speed
2 ~ 150m/min
Roller width
8,300 mm

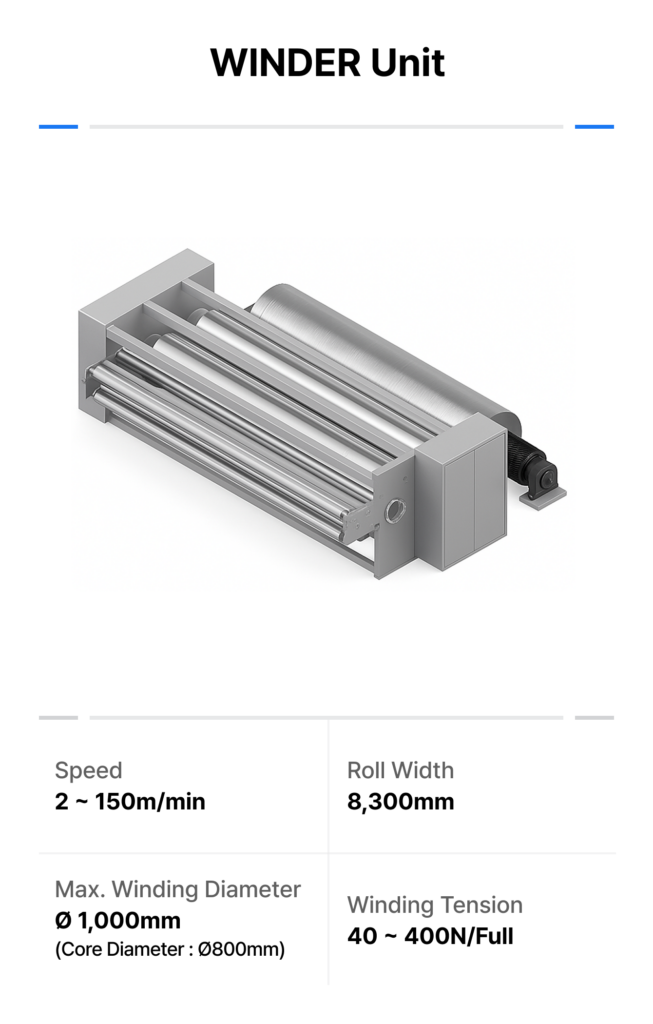

WINDER Unit
Speed
2 ~ 150m/min
Roll Width
8,300mm
Max. Winding Diameter
Ø1,000 mm
(Core Diameter: Ø800mm)
Winding Tension
40 ~ 400N/Full

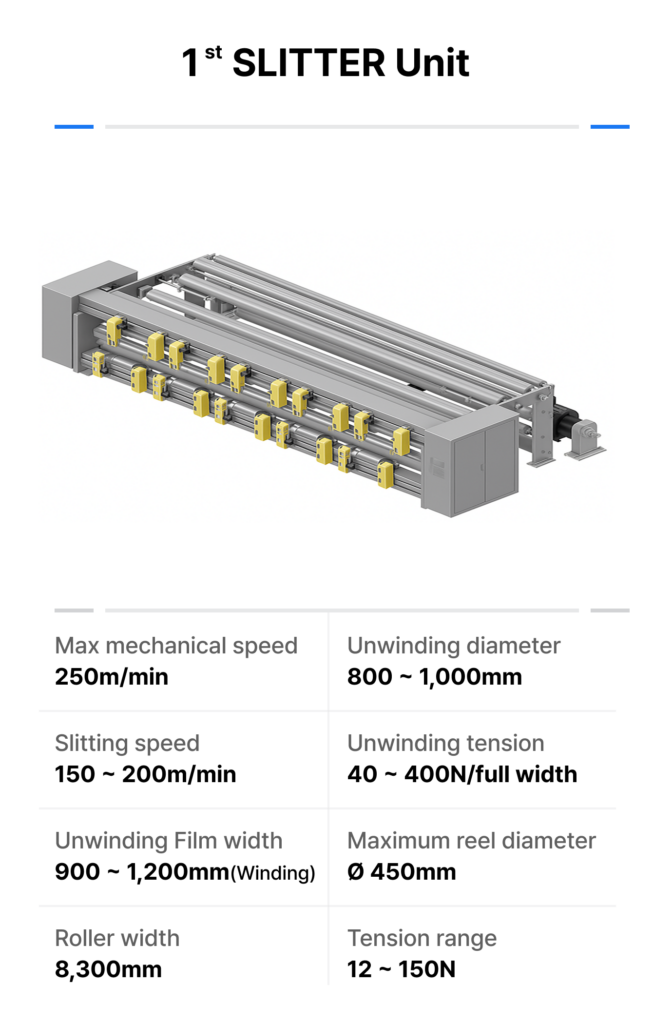

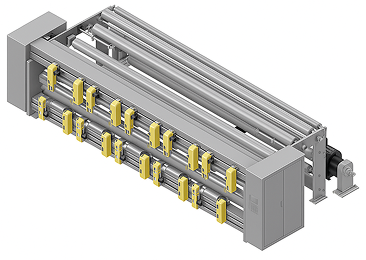

1st SLITTER Unit
Max mechanical speed
250m/min
Slitting speed
150 ~ 200 m/min
Unwinding Film width
900 - 1,200mm (Winding)
Roller width
8,300mm
Unwinding diameter
800 ~ 1,000mm
Unwinding tension
40 ~ 400N/full width
Maximum reel diameter
Ø 450 mm
Tension range
12 ~ 150N
